SHANLING H7 High-End Portable DAC AMP Headphone Amplifier AK4191EQ AK4499EX chips Hi-Res MQA 8x Bluetooth 5.0 PCM768 DSD512 LDAC

Regular price
руб75.600,00
Regular price
руб0,00
Sale price
руб75.600,00
Earn 37800 Reward Points. Learn More...
Color: H7 Titanium
Terms & conditions
Order in the next
to get it by
Details
  • SKU: SHANLING-H7.titanium
  • Brand: brightaudio
  • Type:
  • Availability: In Stock
Description

SHANLING H7 High-End Portable DAC AMP Headphone Amplifier

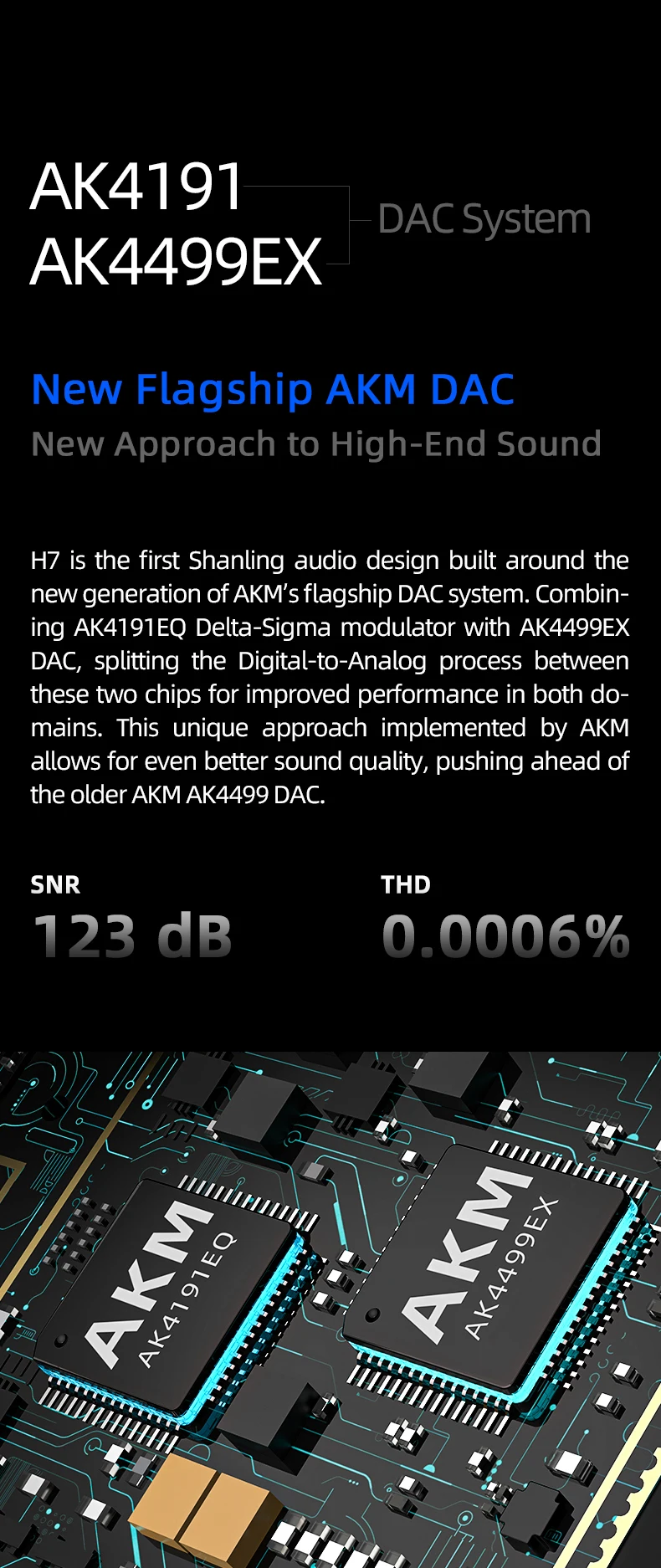

- New Flagship AK4499EX DAC chip from AKM, with its matching AK4191 Modulator
- Extra powerful amplifier offering up to 1.2W @ 32 Ohm
- 3.5 / 4.4 / 6.35mm headphone outputs and rear RCA
- Xmos USB input supporting Hi-Res playback, including MQA

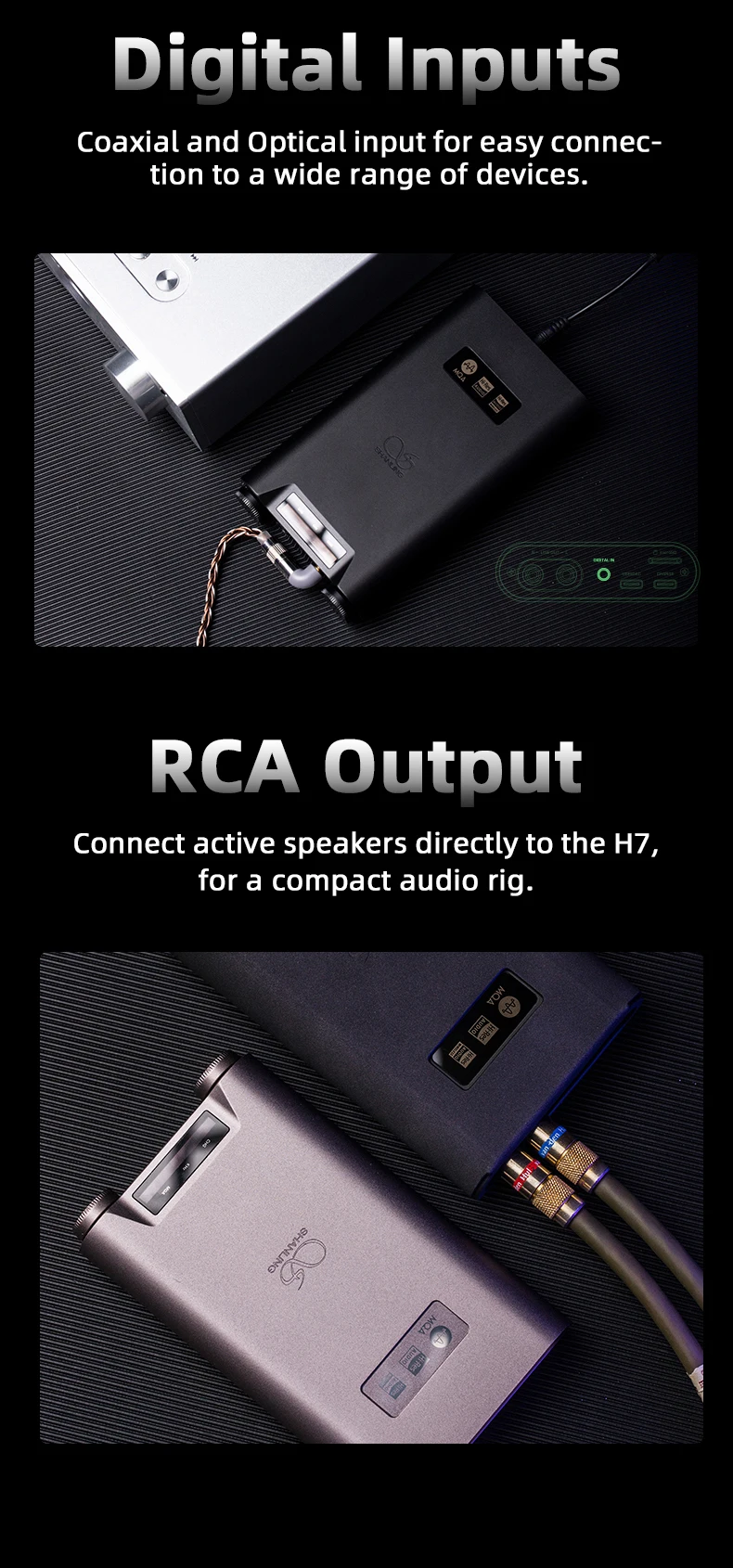

- Combined input for Coaxial and Optical SPDIF

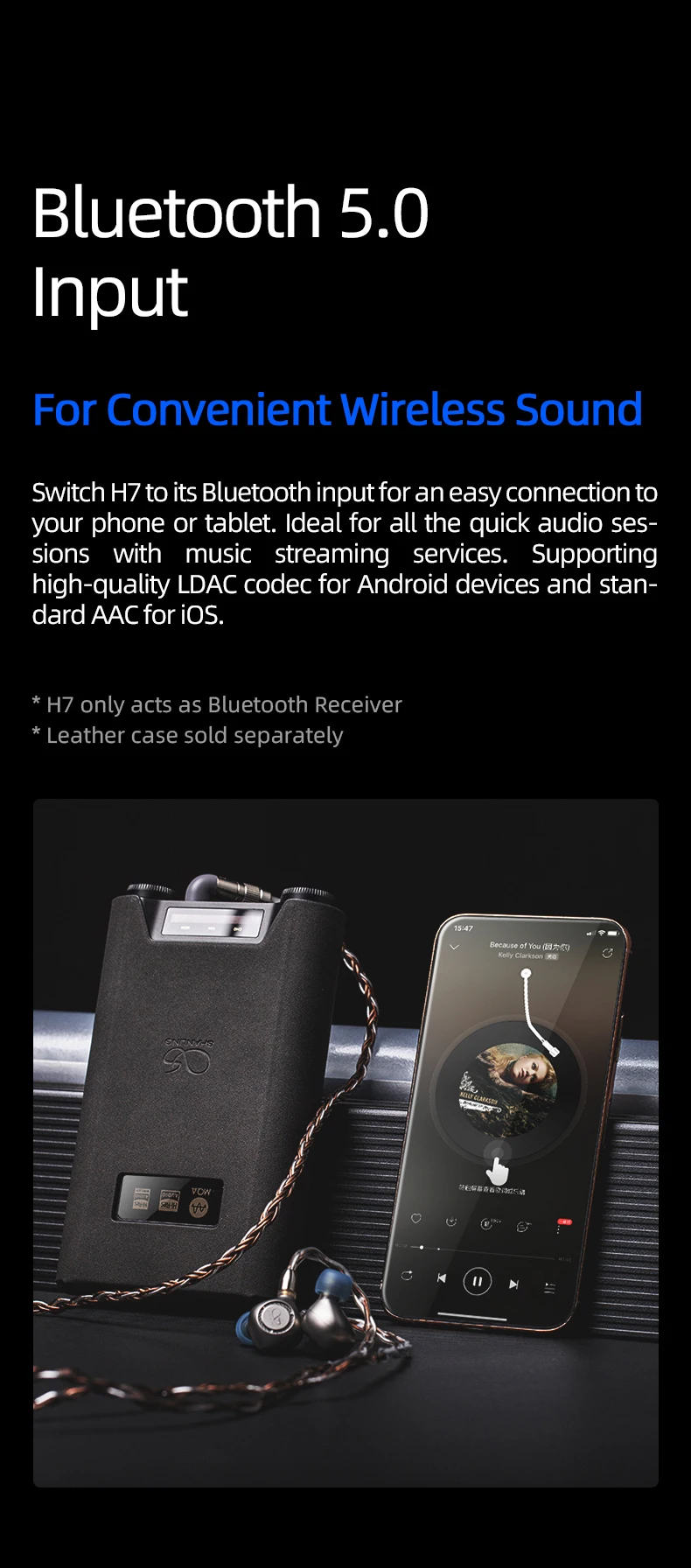

- Bluetooth receiver module with LDAC support

And an extra feature is the MicroSD card slot, allowing for direct local playback. Pack your card with all the music files and then simply control it from the Eddict Player app on your Android or iOS phone. You can even run the H7 as a completely independent player, just with limited control.

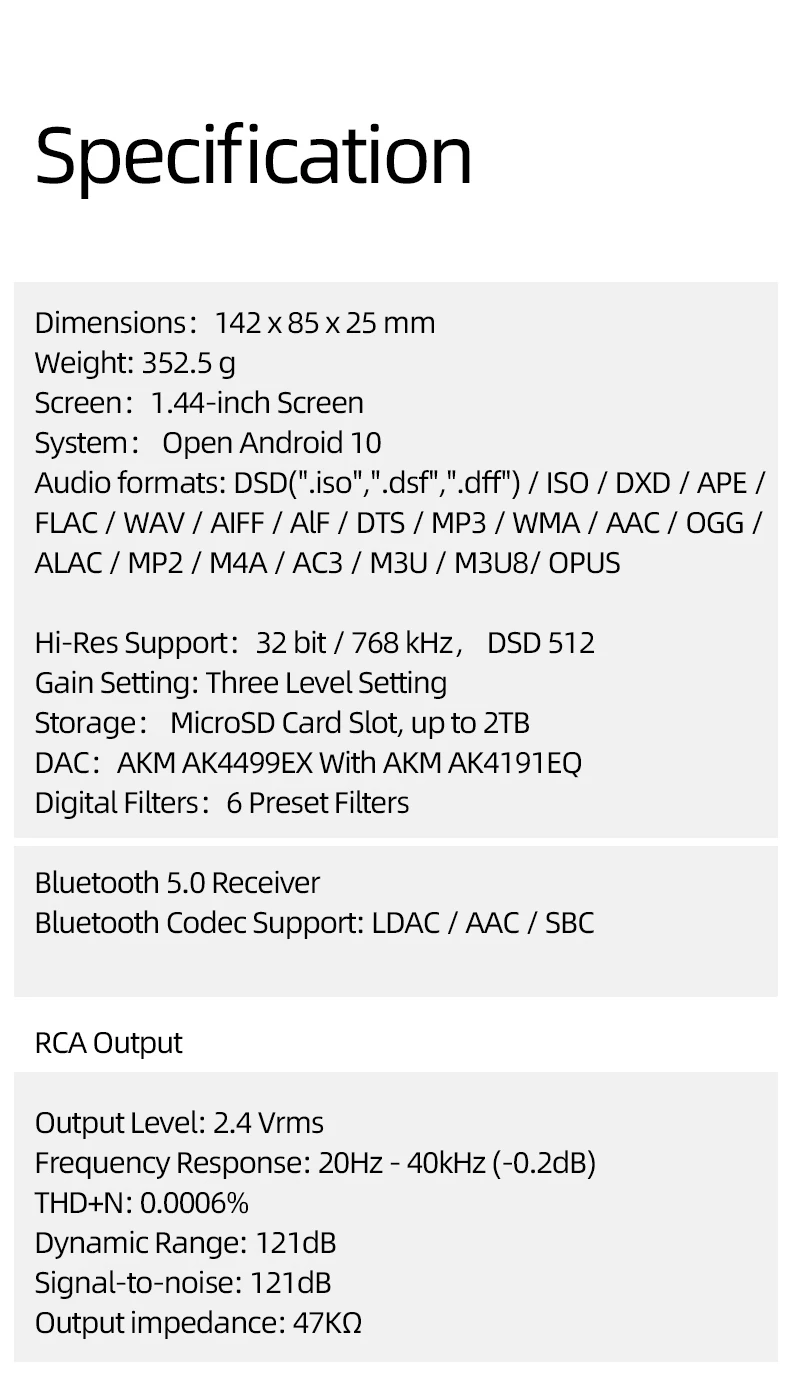

Specification
DAC:AKM AK4499EX With AKM AK4191EQ

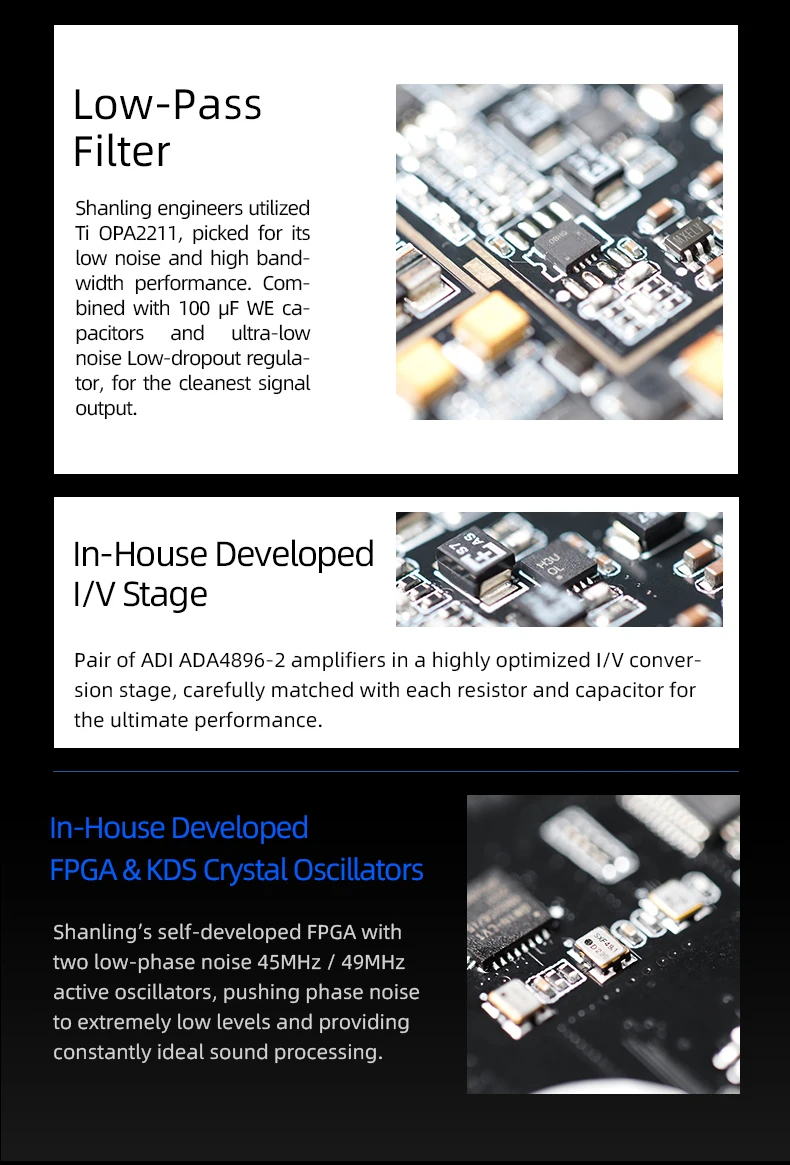

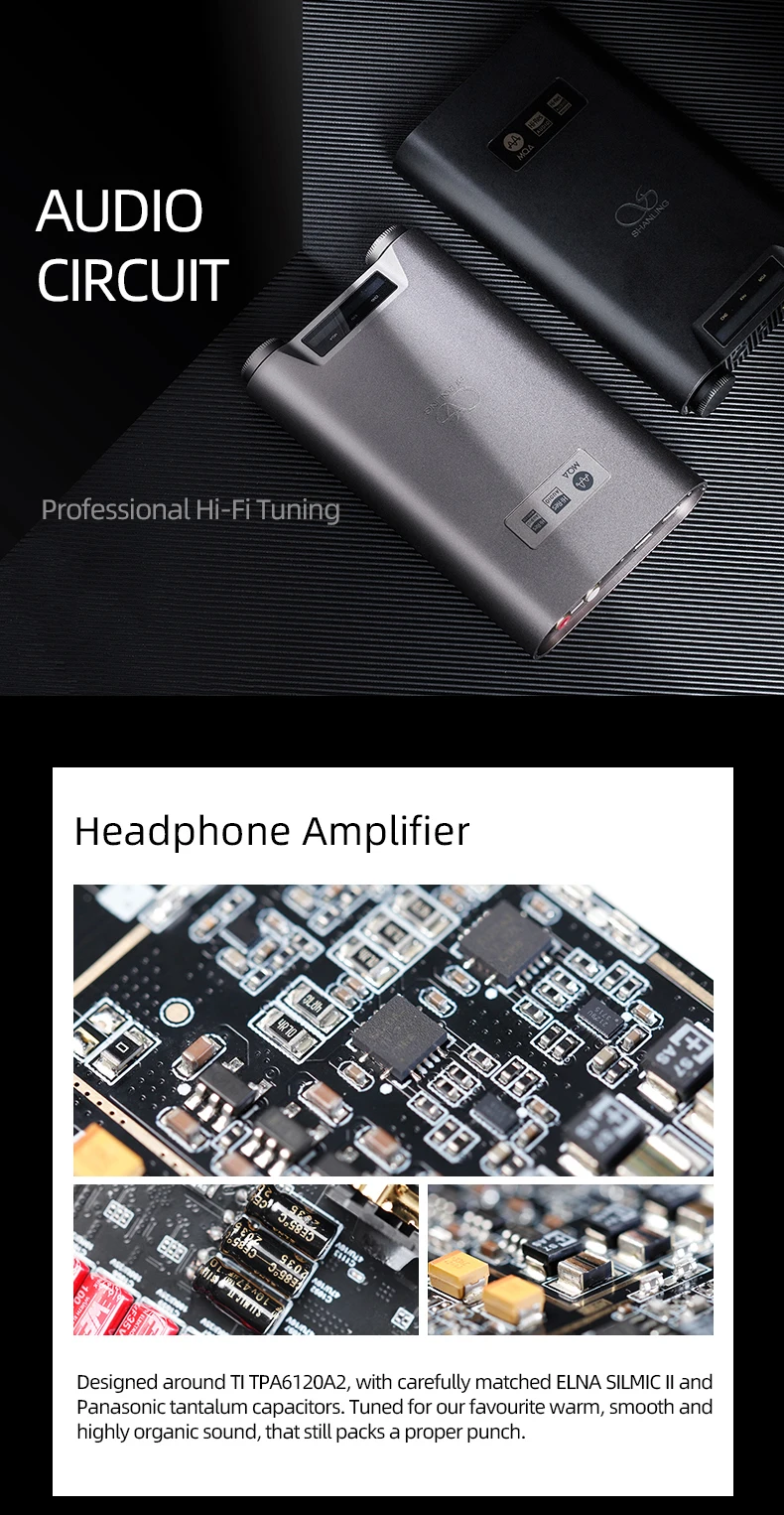

Audio Circuit: TPA6120A2 / OPA2211 / MUSES8920

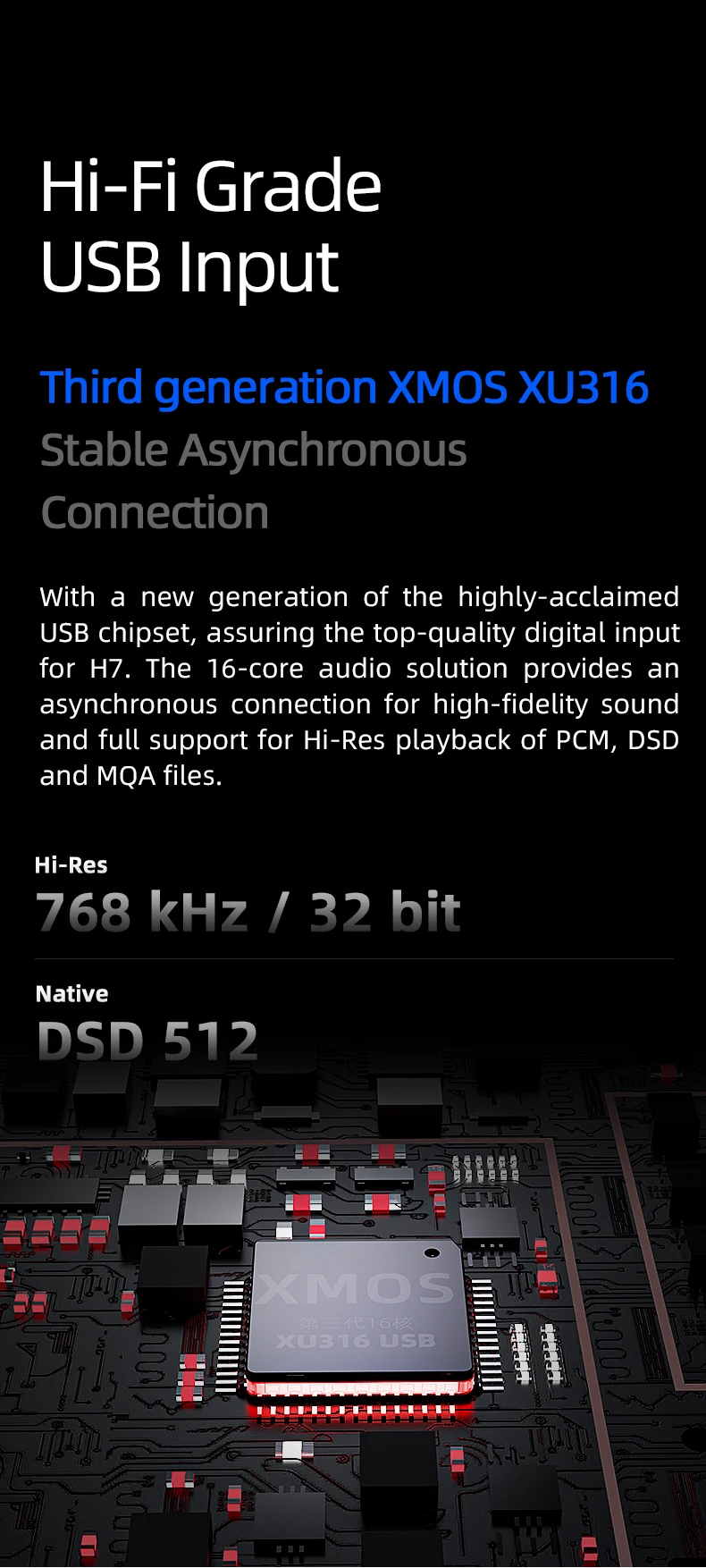

USB Input: XMOS XU316
Platform: Ingenic X2000

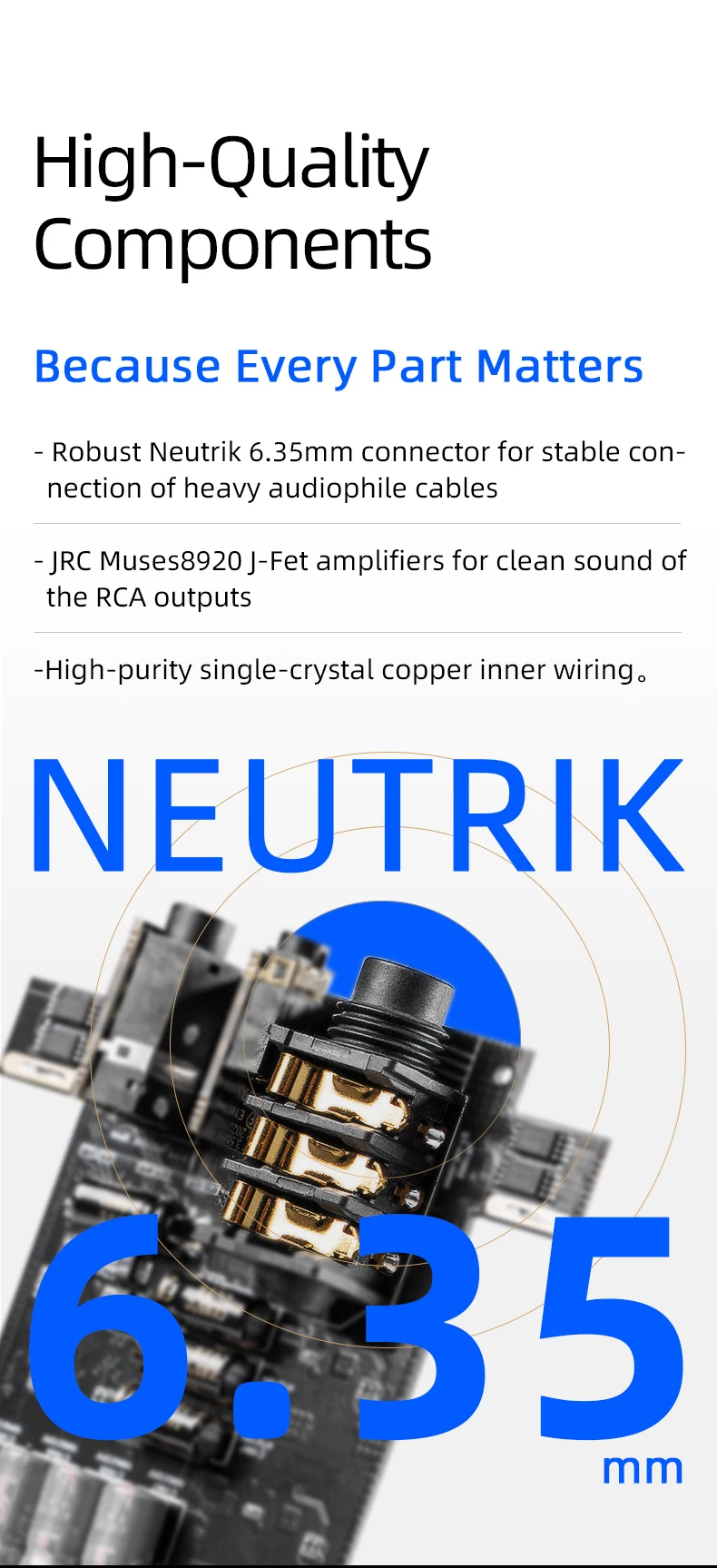

Output Connectors: 6.35/4.4/3.5mm & RCA
Dimensions:142 x 85 x 25 mm
Weight: 352.5 g

Screen:1.44-inch Screen
System: Open Android 10
Audio formats: DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS
Hi-Res Support:32 bit / 768 kHz, DSD 512, MQA 8x
Gain Setting: Three Level Setting

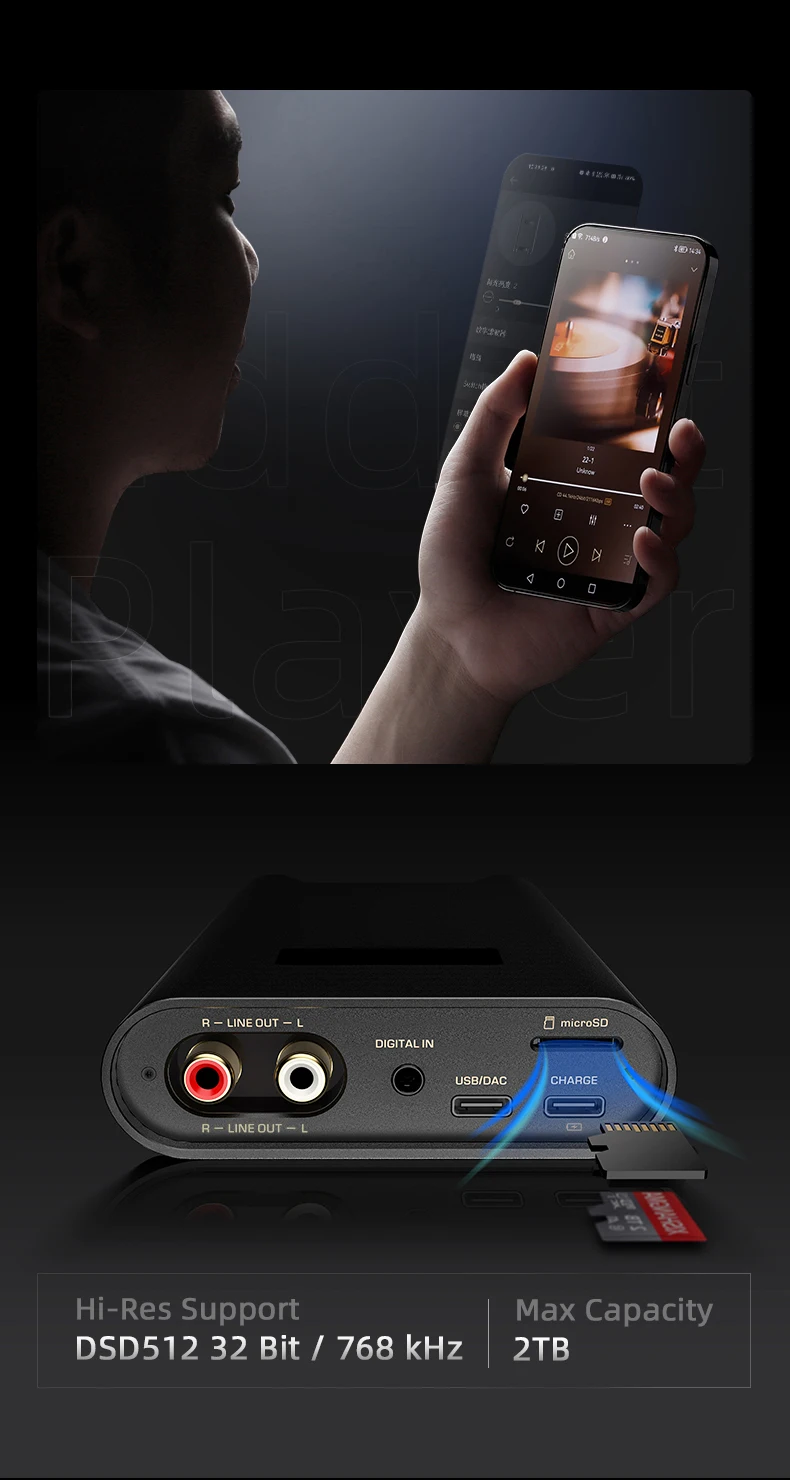

Storage: MicroSD Card Slot, up to 2TB
Digital Filters:6 Preset Filters
Battery: 2x 18650
Battery Capacity: 6800 mAh
Battery Life: Up to 10h SE / 8H BAL
Bluetooth 5.0 Receiver
Bluetooth Codec Support: LDAC / AAC / SBC

RCA Output
Output Level: 2.4 Vrms
Frequency Response: 20Hz - 40kHz (-0.2dB)
THD+N: 0.0006%
Dynamic Range: 121dB
Signal-to-noise: 121dB
Output impedance: 47KΩ

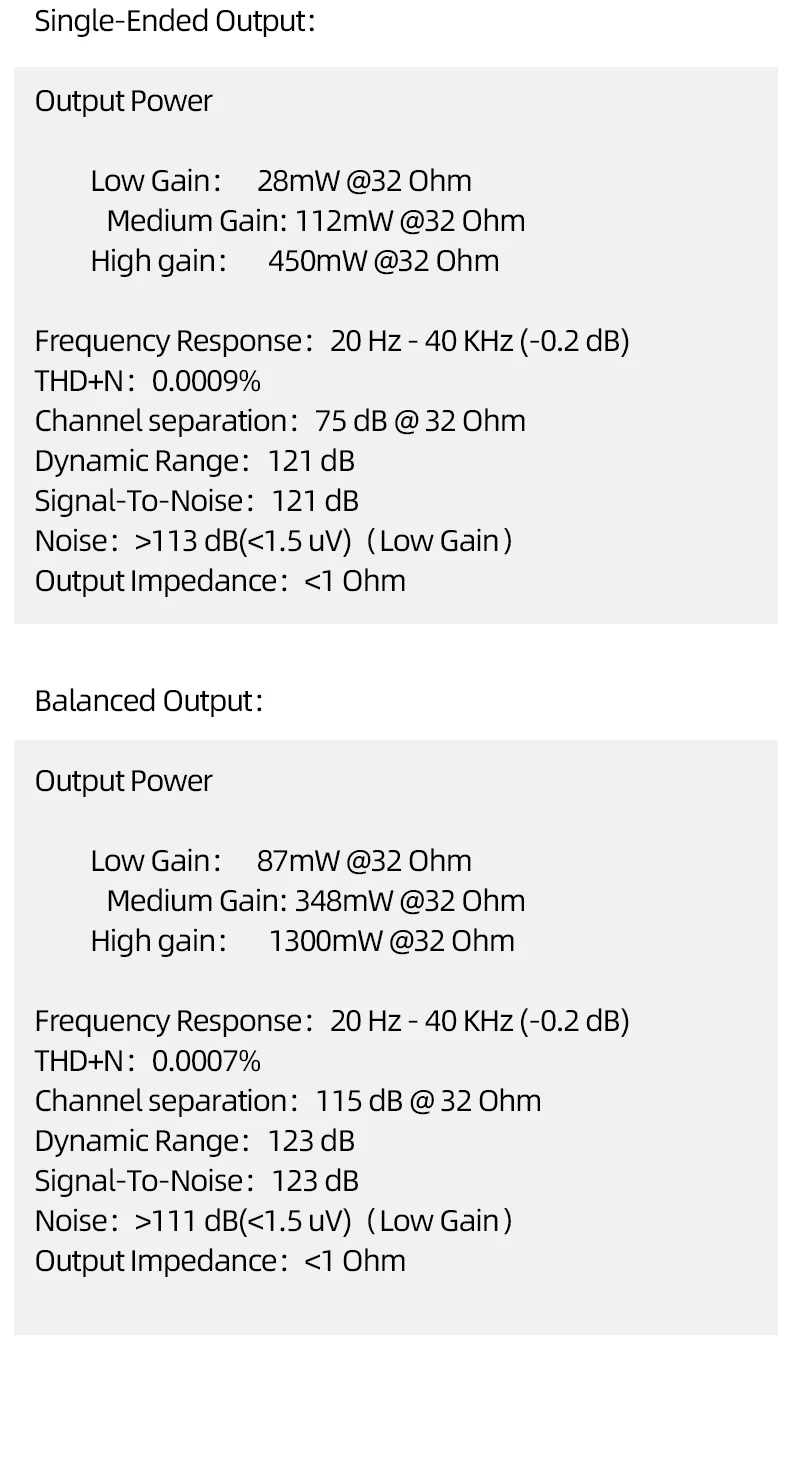

Single-Ended Output:
Output Power
Low Gain: 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain: 450mW @32 Ohm
Frequency Response:20 Hz - 40 KHz (-0.2 dB)
THD+N:0.0009%
Channel separation:75 dB @ 32 Ohm
Dynamic Range:121 dB
Signal-To-Noise:121 dB
Noise:>113 dB(<1.5 uV)(Low Gain)
Output Impedance:<1 Ohm

Balanced Output:
Output Power
Low Gain: 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain: 1300mW @32 Ohm
Frequency Response:20 Hz - 40 KHz (-0.2 dB)
THD+N:0.0007%
Channel separation:115 dB @ 32 Ohm
Dynamic Range:123 dB
Signal-To-Noise:123 dB
Noise:>111 dB(<1.5 uV)(Low Gain)
Output Impedance:<1 Ohm
